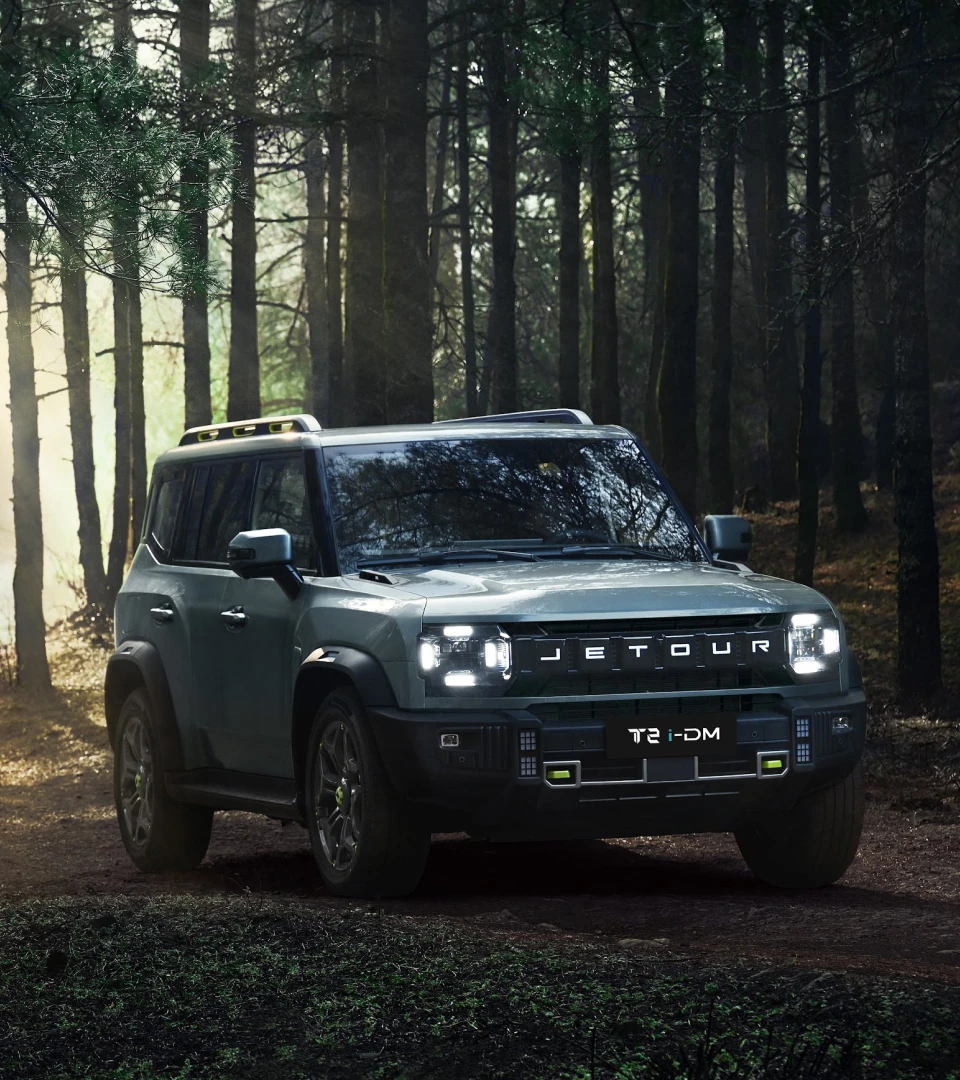

JETOUR T2 i-DM

Basic Specification

Powertrain	1.5TD-3DHT
Vehicle class	A compact SUV
Energy type	Plug-in Hybrid Electric Vehicle
Environmental protection standard	Euro 6B
Engine	SQRH4J15
Transmission type	3DHT

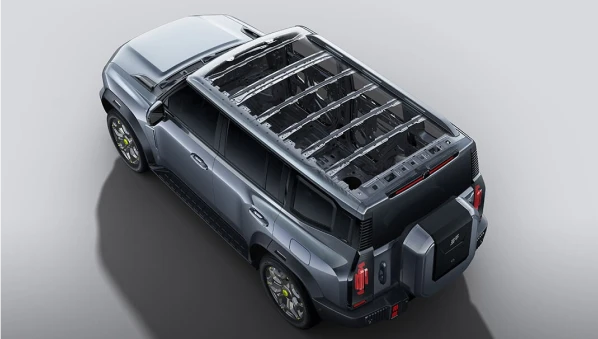

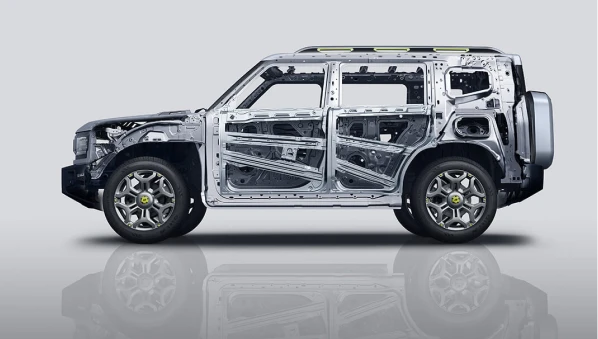

Body structure	Monocoque Body
Maximum speed (km/h)	190
NEDC: comprehensive fuel consumption (L/100km)	0.8
NEDC: Fuel consumption when lack of electricity (L/100km)	5.4

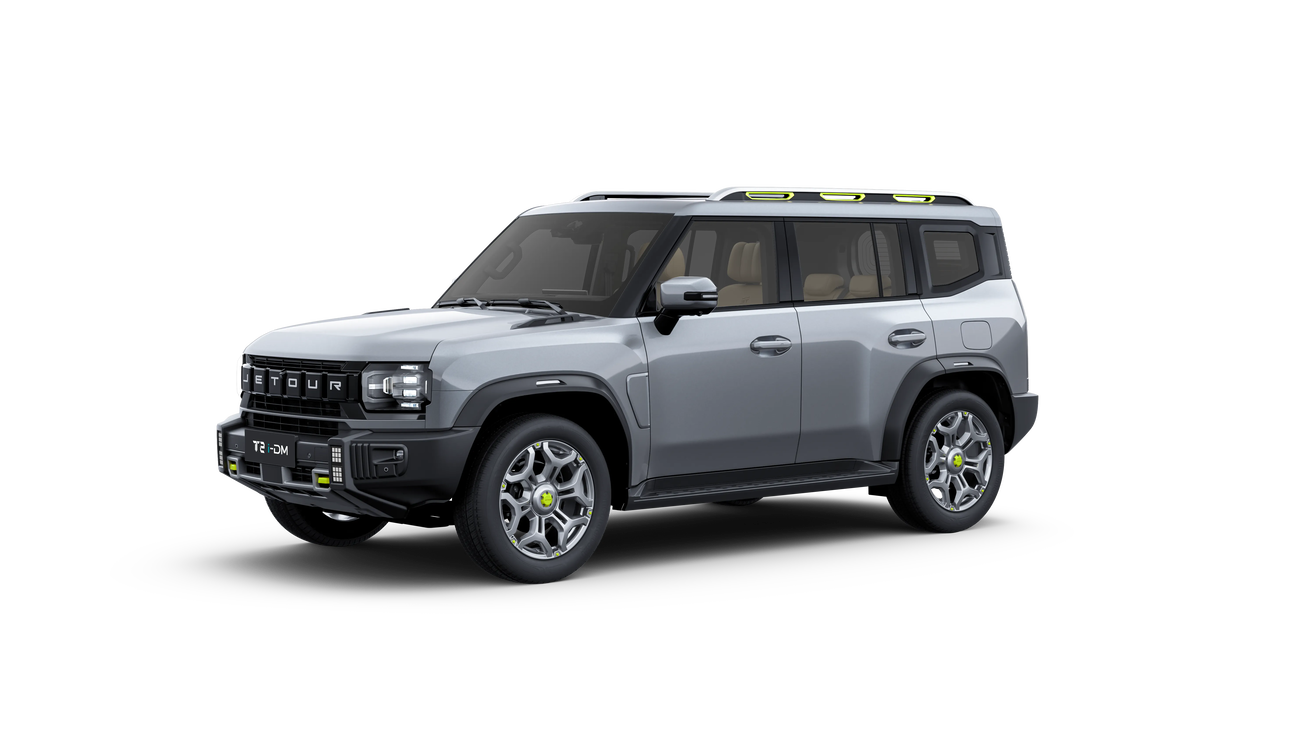

Appearance color	Trendy Toy Manifesto (black) Snow sliver(satin silver) Misty Cyan Aviation silver Bew khaki white Electroplated green
Interior color	●Black/Red ●Green/Orange

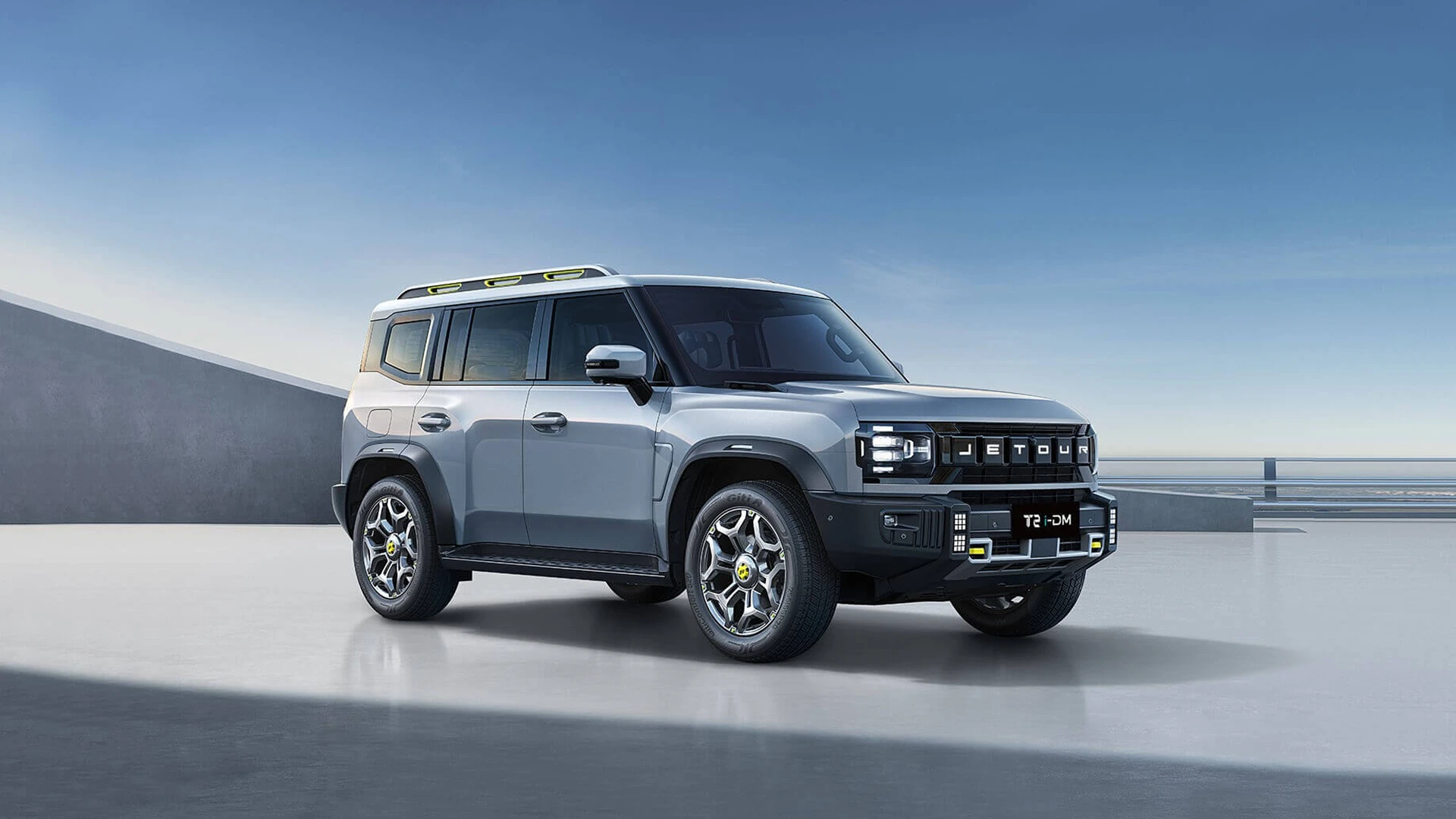

Body

Powertrain	1.5TD-3DHT
Length (mm)	4785 (With spare tire cover) 4612 (No spare tire cover)
Width (mm)	2006
Height (mm)	1875
Wheelbase (mm)	2800
Front wheel base (mm)	1685
Rear wheel base (mm)	1695
Front suspension (mm)	892
Rear suspension (mm)	1093
Minimum ground clearance (mm)	205
Approach Angle (°) Unladen	28
Departure Angle (°) Unladen	30
Number of doors (each)	5
Number of seats (PCS)	5
Tank volume (L)	70
Maintenance weight (kg)	2110
Total mass (kg)	2485
Maximum allowable towing mass	750kg without brake 1600kg with brake

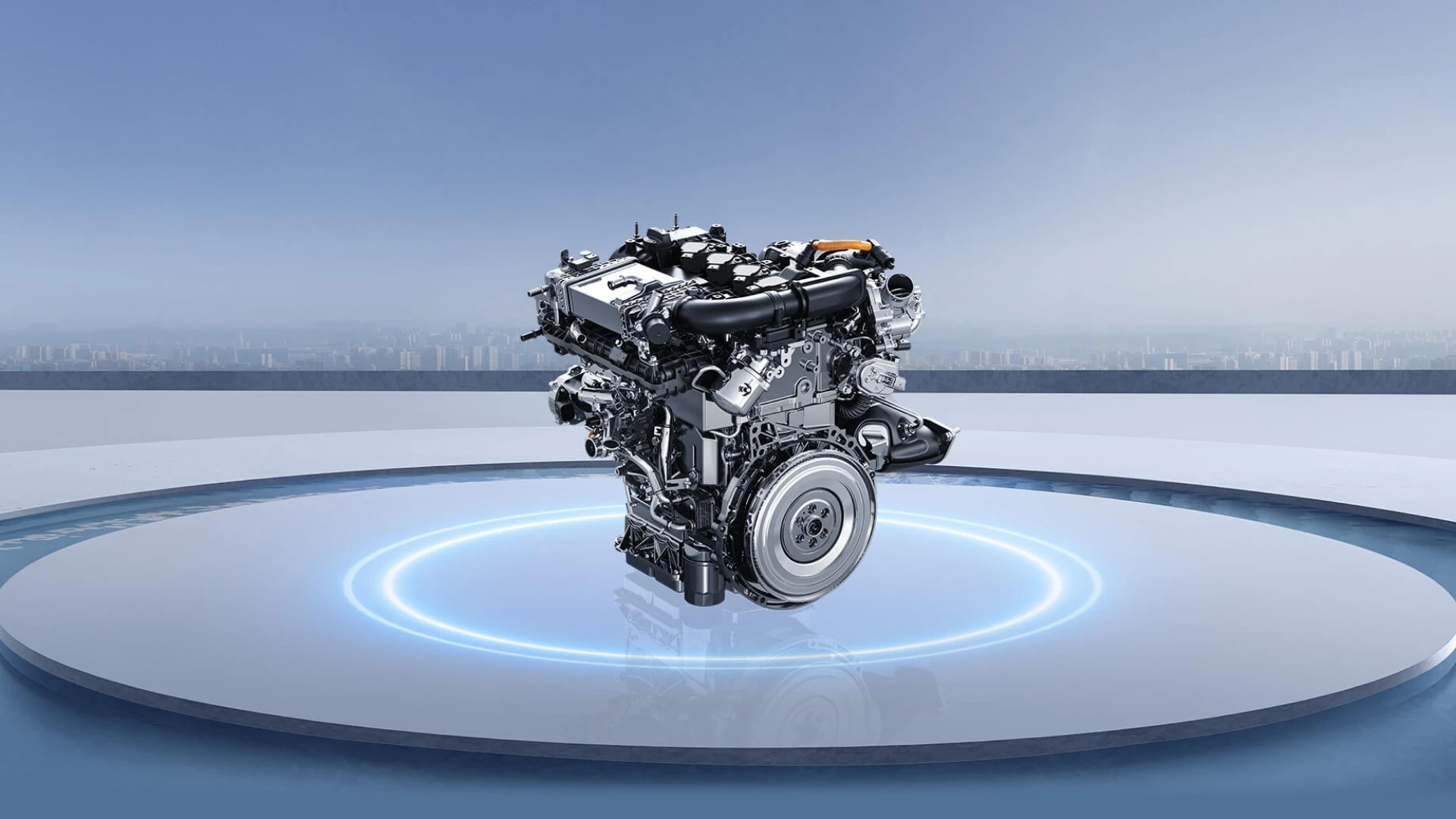

Engine

Powertrain	1.5TD-3DHT
Engine type	SQRH4J15
Displacement (mL)	1499
Intake form	Turbo charge intercooling
Cylinder arrangement	Inline
Number of cylinders (PCS)	4
Number of valves per cylinder	4
Compression ratio	14.5:1
Cylinder diameter (mm)	72
Stroke (mm)	92
Maximum horsepower (Ps)	-
Maximum power (kW)	115
Maximum power speed (rpm)	5200
Maximum torque (N·m)	220
Maximum torque speed (rpm)	2500
Fuel form	Plug-in Hybrid Electric Vehicle
Fuel oil label	92#
Oil supply mode	GDI
Cylinder head material	Aluminum
Cylinder block material	Aluminum

Automobile Motor

Powertrain	1.5TD-3DHT
Automobile Motor type	Permanent Magnet Synchronous Motor
Total power of the automobile motor (kW)	165
Total torque of the Automobile Motor (N·m)	390
Maximum Power of Front Motor 1 (kW)	75
Maximum torque of Front Motor 1 (N·m)	170
Maximum Power of Front Motor 2 (kW)	90
Maximum torque of Front Motor 2 (N·m)	220
Number of front-row driving motors	2
Automobile Motor arrangement	Hybrid box integration

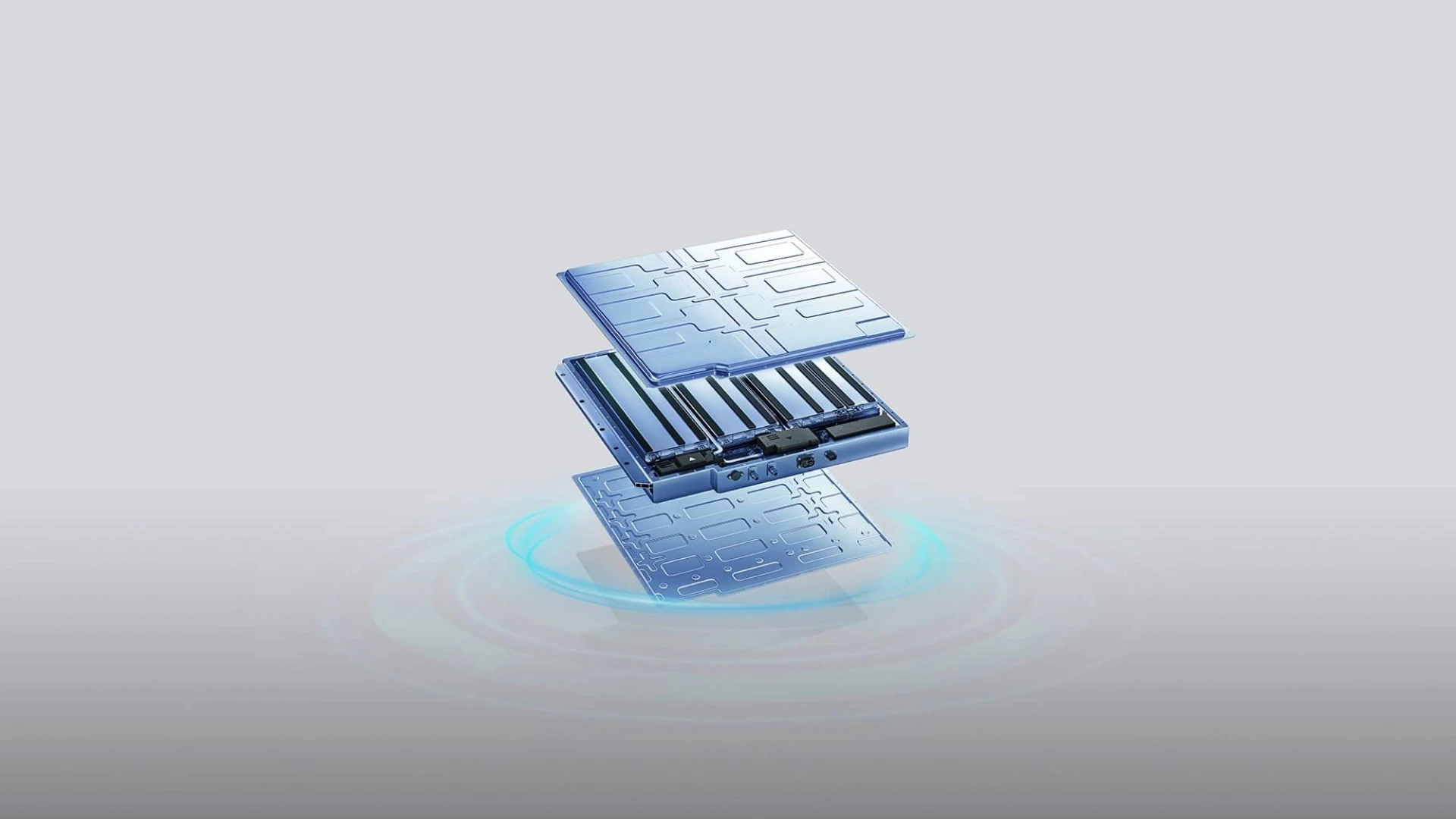

Power Battery

Powertrain	1.5TD-3DHT
Battery Type	LiFePO₄
WLTC pure electric cruising range (km)	-
NEDC pure electric cruising range (km)	139
CLTC pure electric cruising range (km)	-
Battery energy (kWh)	26.7
Power battery warranty	8 years or 160,000 kilometers
Fast charging time (h)	0.5h
Fast charging capacity (%)	30%-80%
Slow charging time (h) 30%-100% battery capacity	＜4

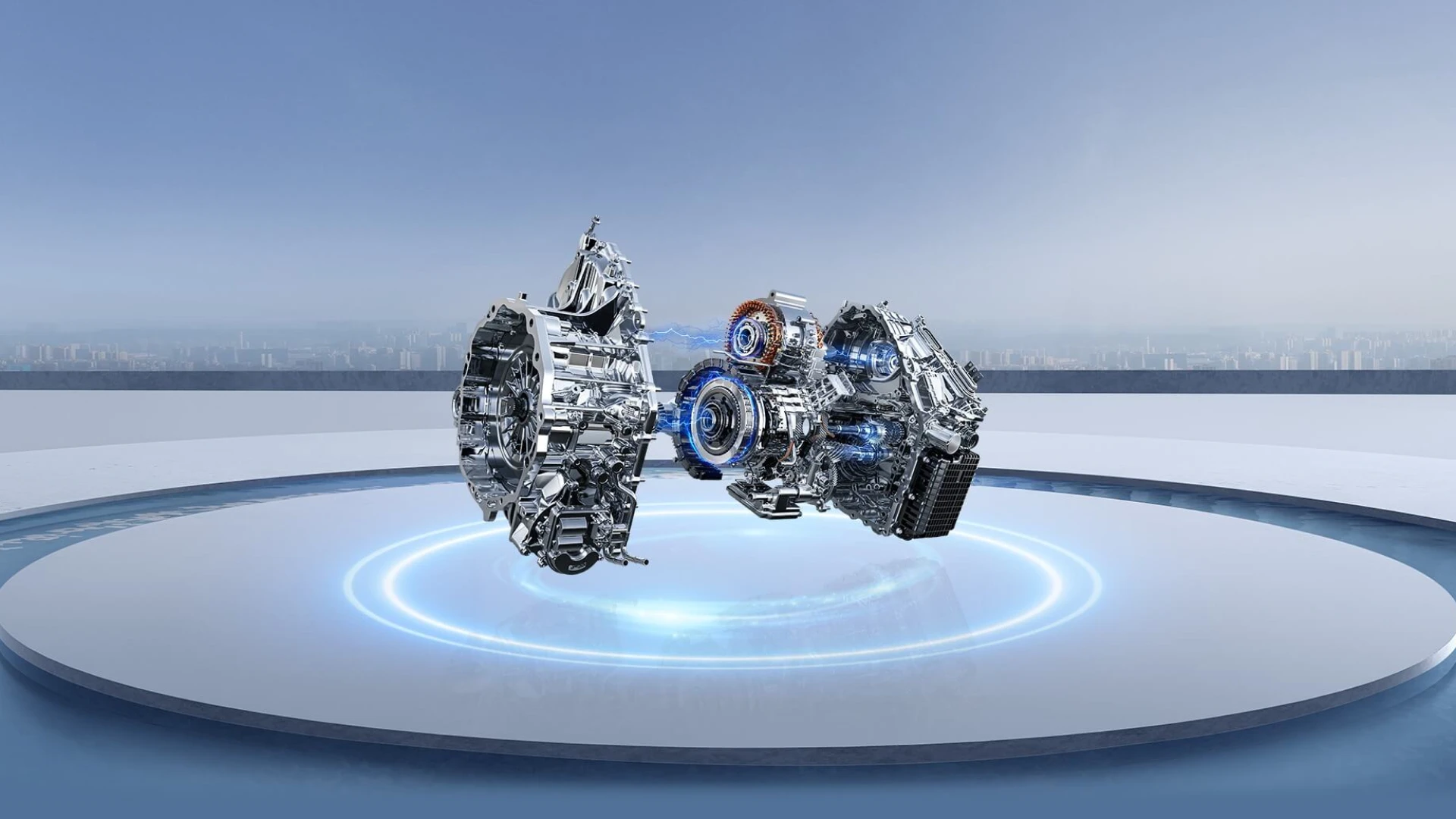

Gearbox

Powertrain	1.5TD-3DHT
Number of gears	3
Transmission type	DHT

Chassis Steering

Powertrain	1.5TD-3DHT
Driving form	FF
Four-wheel drive form	-
Form Of Front Suspension	MacPherson
Form Of Rear Suspension	Multi-link
Suspension height adjustment	-
Suspension soft and hard adjustment	-
Form Of Power-Assisted Steering	Electric power
Body structure	Load-bearing
Underbody Cover	●Front compartment plastic fender —Rear fuel tank fender

Wheel Braking

Powertrain	1.5TD-3DHT
Front brake type	Ventilation disk brake
Rear brake type	Disc type
Parking Braking Mode	Electronic Parking (EPB)
Specification Of Tire	●255/55R20
Tyre type	HT
Specification Of Spare Tire	●small spare tire+spare wheel cover ○standard size spare tire+NO spare wheel cover
Tyre repair kit	-
Back door tool box	-
Tyre manufacturer	Giti

Active/Passive Security

Powertrain	1.5TD-3DHT
Main/copilot driver seat airbag	●/●
Main/copilot side airbags	●/-
Front/back head airbags	●/●
TPMS (Tire Pressure Monitoring System)	Tire pressure display
Warning For Safety Belt Unlock	●Front row
Isofix	●
ABS (Anti-lock Brake System)	●
EBD (Electric Brakeforce Distribution)	●
EBA brake assist system	●
TCS (Traction Control System)	●
ESC (Electric stability control)	●
BSD (Blind Spot Detection)	●
LDW (Lane Departure Warning)	●
LKA (Lane Keeping Assist)	●
TSR	-
AEB (Advanced Emergency Braking)	●
Driver condition monitoring	-
FCW (Forward Collision Warning)	●
RCW (Rear Collision Warning)	●
Emergency seat belt lock	● Rear row
Preload limited force seat belt	● Front row
Manual Child Lock	●
DOW (Door-Opening Warning)	●
RMI anti-rollover control system	●
Cornering Brake Control	●
Low speed emergency braking	-
Reverse Lateral Braking (RCTB)	-
Emergency Lane Keeping (ELK)	-

Auxiliary/Control Configuration

Powertrain	1.5TD-3DHT
Front/rear parking radar	●/●
Rear View Monitoring	●
RCTA	●
Cruise control system	● ACC
TJA (Traffic Jam Assistance)	●
ICA (Integrated Cruise Assistance)	●
ATS	-
DCLC	-
Driving Model	● SPORT ● ECONOMY ● STANDARD ● SNOW ● EV ● HEV
Auto Parking Assistance	-
Remote Parking Assistance	-
Idle Start Stop System	-
Auto hold	●
Handbrake type	● EPB
Hill-start Assist Control	●
Hill Descent Control	●
Central Differential	-

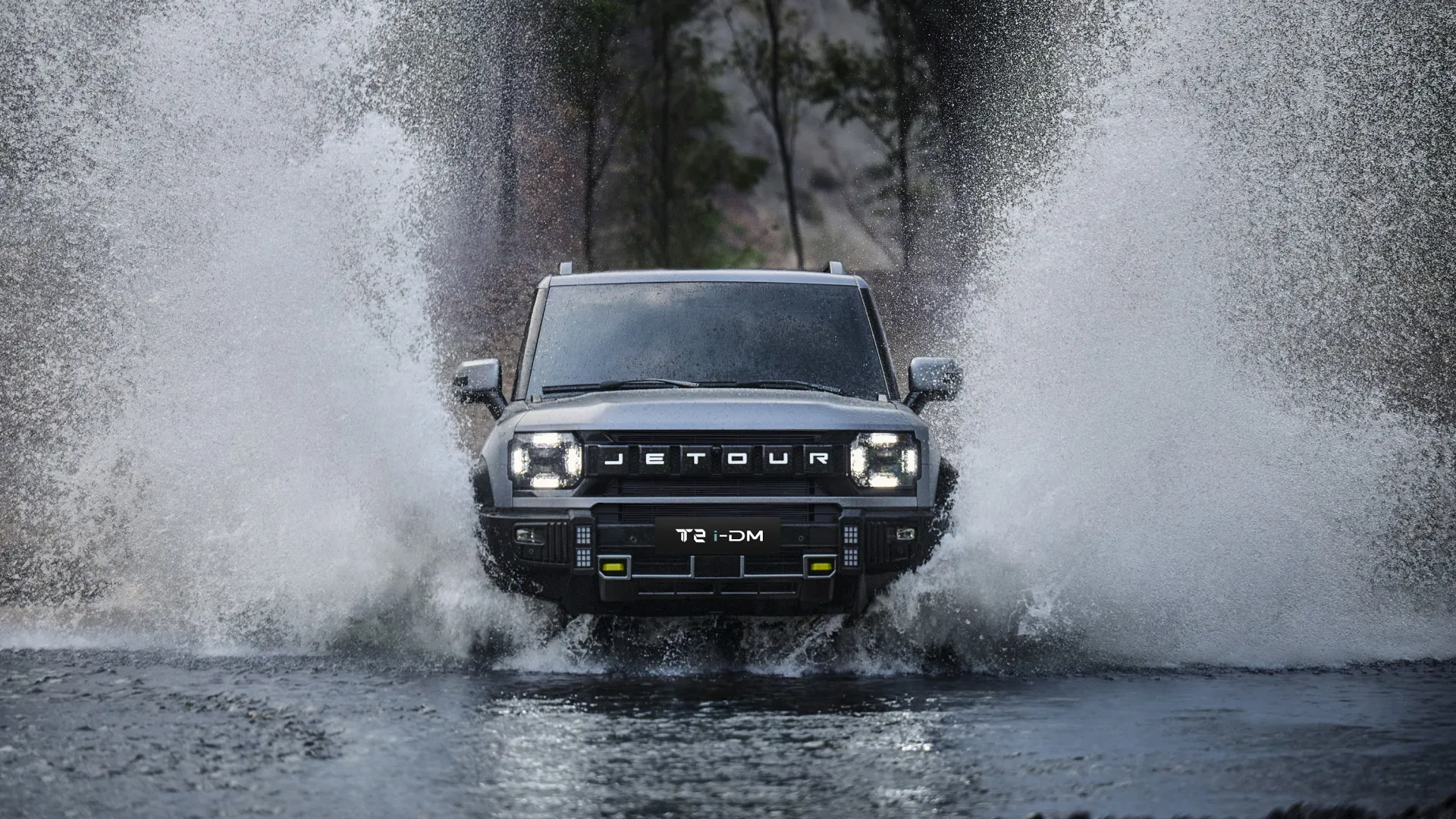

Wading sensing system	●
Electronic gear shift	●
Braking Energy Regeneration System	●
Adjustable energy recovery intensity	●

External/Anti-theft Configuration

Powertrain	1.5TD-3DHT

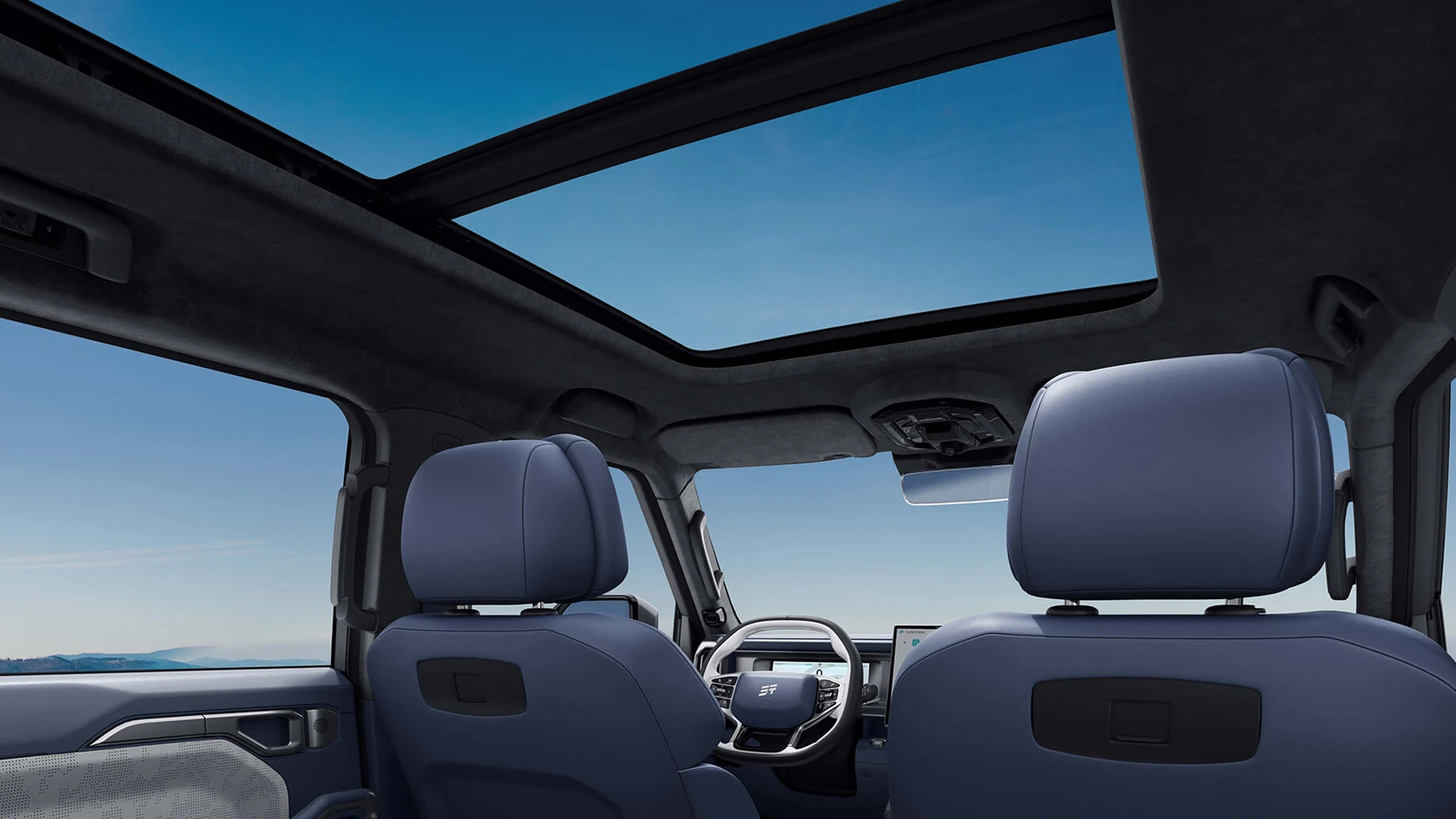

Panoramic Sunroof	●
Support Form Of Hood (Air Spring)	●
Small backpack printed with the 318 route map	-
Material Of Rim	Aluminium alloy
Electric tailgate	●
Luggage Rack	●
Engine Electronic Security	●
Central Lock	●
Key type	●Remote control key
Key remote control	●
Keyless start system	●
Keyless entry function	●Home driving
Side pedal	●Fixed
Battery preheating	●
APP remote control function	-
Engine decorative cover	●Half
Phone APP remote car search	-

Internal Configuration

Powertrain	1.5TD-3DHT
Steering Wheel Material	●Leather
Steering Wheel Position Adjustment	●Manual-4 way
Multi Function Steering Wheel Button	●
Steering Wheel Heating Function	-
Steering Wheel Vibration Warning	-
Crystal Handle	●
Paddle Shifters	-
Roof Material、Guard Column Material	●Light beige knitted fabric
"行" mark + lighting on the storage box under the sub-instrument	●

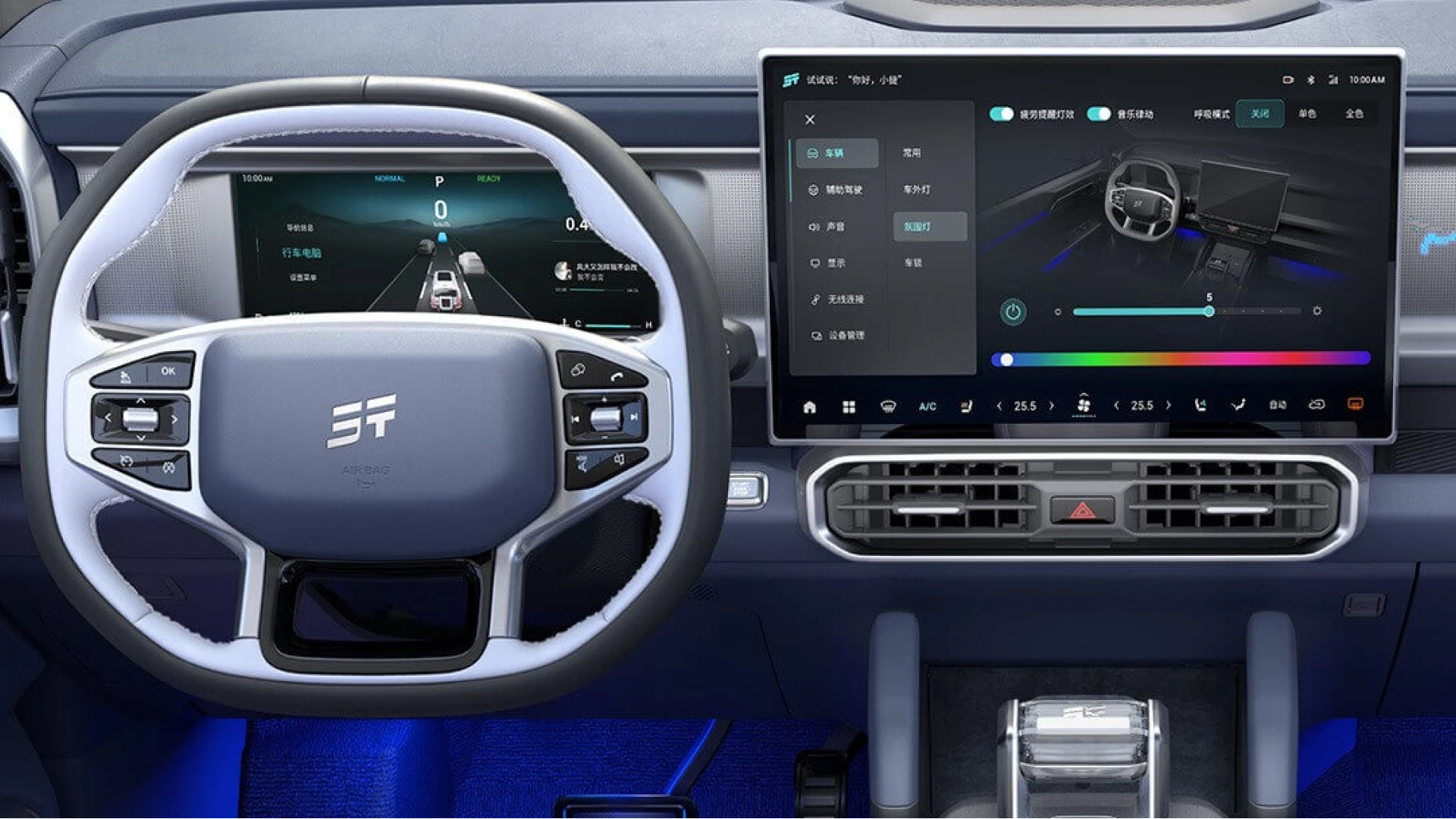

Multi-Function Display Screen Size	●Chromatic
Full LCD dashboard	●
LCD meter size (English, Spanish, Russian, Arabic, Farsi, Uzbek, Portuguese)	●10.25 inches
Panel-mounted Ambient Lights	●
Driving Recorder	-
Active Noise Reduction	●

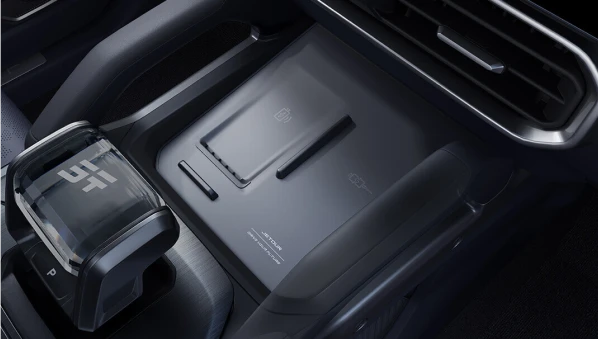

Mobile Phone Wireless Charging (50w)	●Front row
Trunk Strap Anchor Points (2 on the left)	●
Trunk Anchor Points	●
Trunk Storage Box	●
Storage Box Under Driver Seat	-
ETC	-

Lighting Arrangement

Powertrain	1.5TD-3DHT
Low light source	●LED
High beam source	●LED

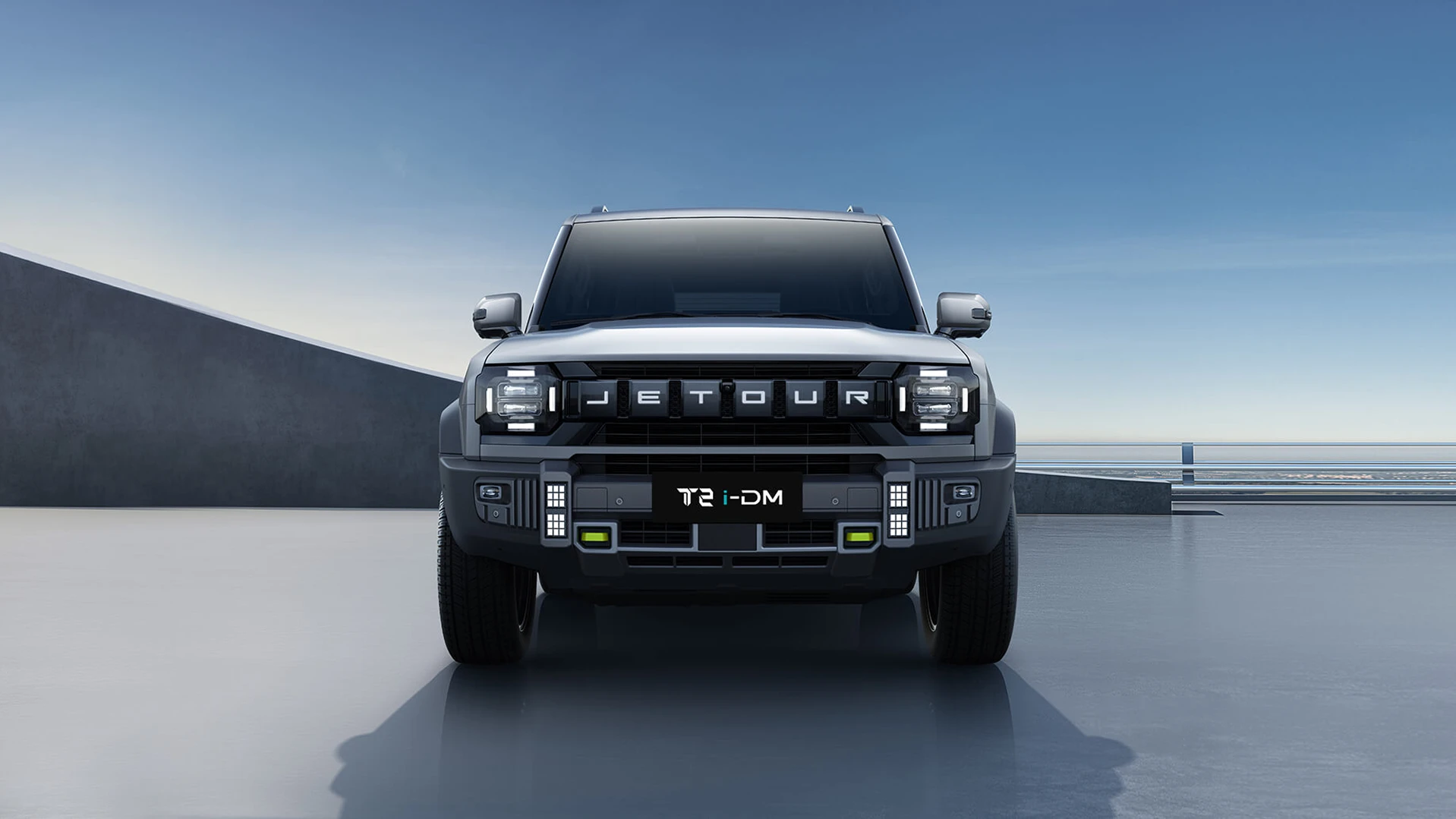

Lighting feature	●Matrix headlights
LED daytime running lights	●
JETOUR word light	●
Adaptive near and far light	●
Automatic headlight	●
Steering auxiliary light	●
Front fog lights	●LED
Car front nine grid lampshade	Only the lamp shade
Side wheel eyebrow lampshade	Only the lamp shade
Headlight height adjustable	●
Headlights turn off late	●
Touch mode reading light	●
Interior ambient light (Can change with the music melody of the infotainment system)	●Chromatic
Light show	-
LED tail light	●

Air conditioning/Refrigerator

Powertrain	1.5TD-3DHT

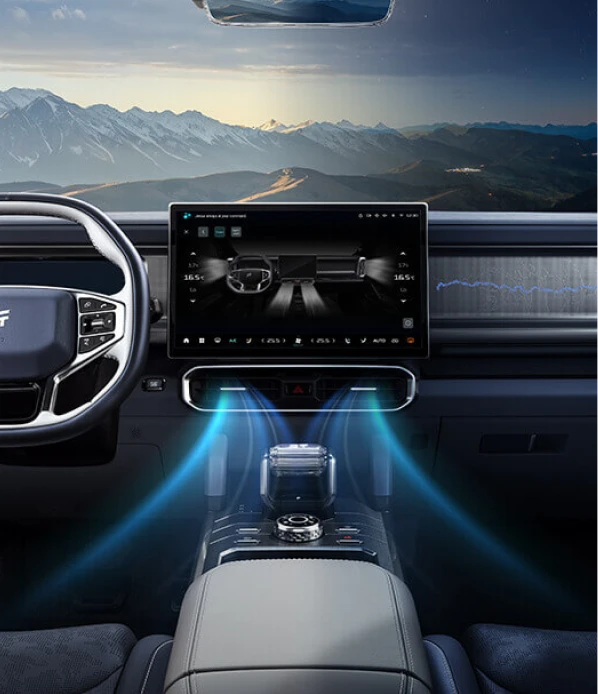

Automatic Air Conditioning	●
Backseat air outlet	●
Temperature differential control	●
Car air purifier	-
PM2.5 filter device in car	-
Anion generator	-
In-car fragrance device	-
Ultraviolet germicidal lamp	-
Individual fragrance box	Ecology
Bottle opener	●
Air Quality Management System (AQS)	●
Parking air conditioner	●

Seat Configuration

Powertrain	1.5TD-3DHT
Seat layout	2+3
Seat material	●PVC(black) ●Fabric+PVC(dark green)
Main seat adjustment mode	●Electric 6-way
Auxiliary seat adjustment	●Electric 4-way
Main seat function	●Ventilated Seats
Passenger seat function	●Ventilated Seats
Power seat memory function	●Driver's Seat/●Passenger's Seat
Sleep headrest	-
Second row seat adjustment mode	Angle Manual Adjustment
Second row seat feature	Angle Power Adjustment&Backrest Folding
Rear seat reclining form	●Pick a stack
Front center armrest	●
Rear center ordinary large armrests	●
Rear center luxurious large armrests	-
Rear cup holder	●
Heated/cooled cup holder (central armrest)	●

Multimedia Configuration

Powertrain	1.5TD-3DHT
Central Audio and Entertainment Display Touch Panel	●
Multi-Function Display Screen Size inch (English, Spanish, Arabic, Farsi, Portuguese)	●15.6″
GPS Navigation System	-
Navigation traffic information display	-
Road assistance call	-
Bluetooth/car phone	●
Car wireless handheld microphone placement base in the center armrest box	●
Car WiFi hotspot	-
CARPLAY & Android Auto	●
Voice-controlled region	●Driver's Seat + Passenger's Seat + Rear seat
Intelligent voice control (English, Spanish, Arabic, Portuguese)	● Multimedia systems ● Phone ● Sunroof ● Air Conditioning
AI virtual intelligent robot	-
FACE ID	-
Biomonitoring system OMS	-
Vehicle networking	-
OTA upgrade	-
Multimedia/charging interface	●USB
Number of USB/Type-C ports	●2+2 front row 1USB+1Type-C rear row 1USB+1Type-C
Car-mounted slow charging charging gun	●EURO STANDARD
Charging port (fast charge + slow charge)	●EURO STANDARD
220V power supply in trunk	-
Trunk 12V power interface	●
Vehicle-to-Load power (220V)	●
External discharge gun	Ecology
Brand Audio	●Sony
Number of speakers (12 speakers including 1 trunk subwoofer)	●12
Adjust volume with speed	●
Car APP application	-
Car online game	-
4G network	-

Glass/Rear View Mirror

Powertrain	1.5TD-3DHT
Front/rear power Windows	Front ● / Rear ●
Window one key lift function	● All car
Window anti-clamping function	●
Multi-layer soundproof glass (front windshield + front doors and windows)	●
Heat-insulating glass for the whole vehicle (windows + front and rear windshields + sunroof)	-
Exterior rearview mirror function	● Adjustable Electric Rearview Mirror Lens ● With Electric Heating Function For Outside Rear-View Mirror ● Outside Rearview Mirror Fold + Automatic Folding (Including Electric Folding) ● Door Mirrors With Memory Function + Outside Rearview Mirror Reverse Over ● Laser Lamps
Internal rearview mirror function	● Manual Dimming Rearview Mirror
Rear privacy glass	-
Driver/Copilot visor make-up mirror	● Driver's Seat + Light ● Passenger's Seat + Light
Rear wiper	●
Sensor wipers	●
Front windshield wiper	●
Automatic defogging	●

Characteristic Configuration

Powertrain	1.5TD-3DHT
Dynamic transparent car bottom	●
Tracking astern	-
Intellectual dodge	●
Car picnic table	●
Rear door light	●
Rear trailer bar connection interface	●
Model of Slow charge Charging Gun	TYPE B

Ecological Increment

Powertrain	1.5TD-3DHT
Roof deck luggage rack	Ecology
Front and rear sports bumpers	Ecology
Same size AT tire	Ecology
Roof front searchlight strip	Ecology
Watch Key	-
Car coffee machine	-
Car refrigerator/heat box	Ecology
VR glasses	-
Smart roof tent	-
drone	-
Car Wireless Handheld Microphone	-
Small table behind the seat	Ecology
Car Scooter	-
Aromatherapy combination	Ecology
Projector + Screen Set	Ecology
Inflatable mattress + inflatable tools	Ecology
tow trailer hitch	-
outdoor package	Ecology
First Aid Kit	Ecology
mobile power	Ecology
Trunk multi-function subwoofer	Ecology
Bluetooth speaker (removable)	Ecology
Cooking set (pot etc.)	Ecology
Roof canopy	Ecology
Side window folding climbing ladder	Ecology
Side window tool box	Ecology
Multifunctional instrument panel bracket	Ecology
Tail door folding table	Ecology
Picnic table stand	Ecology

Intelligent Hardware

Powertrain	1.5TD-3DHT
Car chip	8155

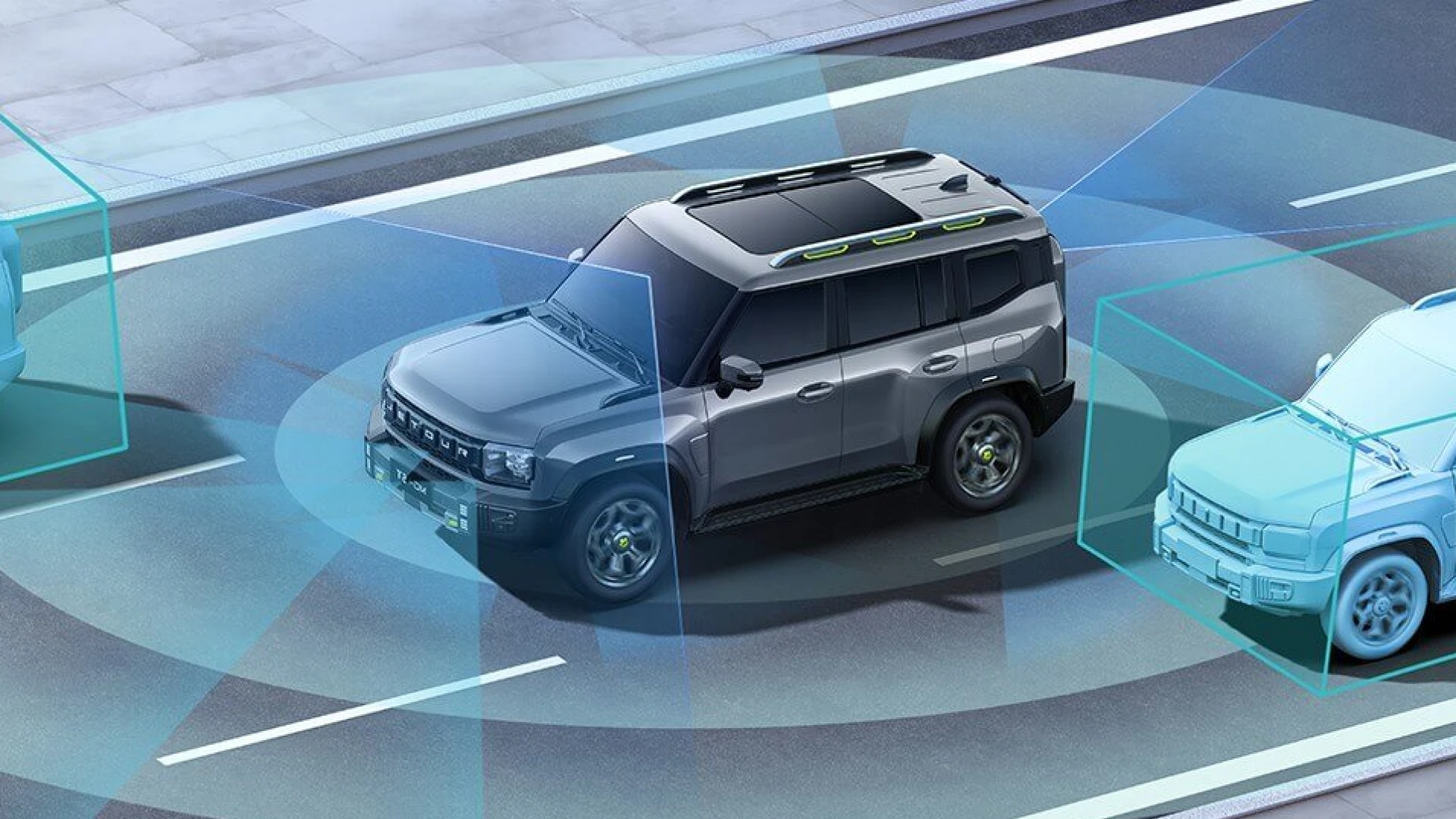

Multi-function front view camera	1
Short-range ultrasonic radar probe (4+4)	8
Forward millimeter wave radar	-
Corner millimeter wave radar	●

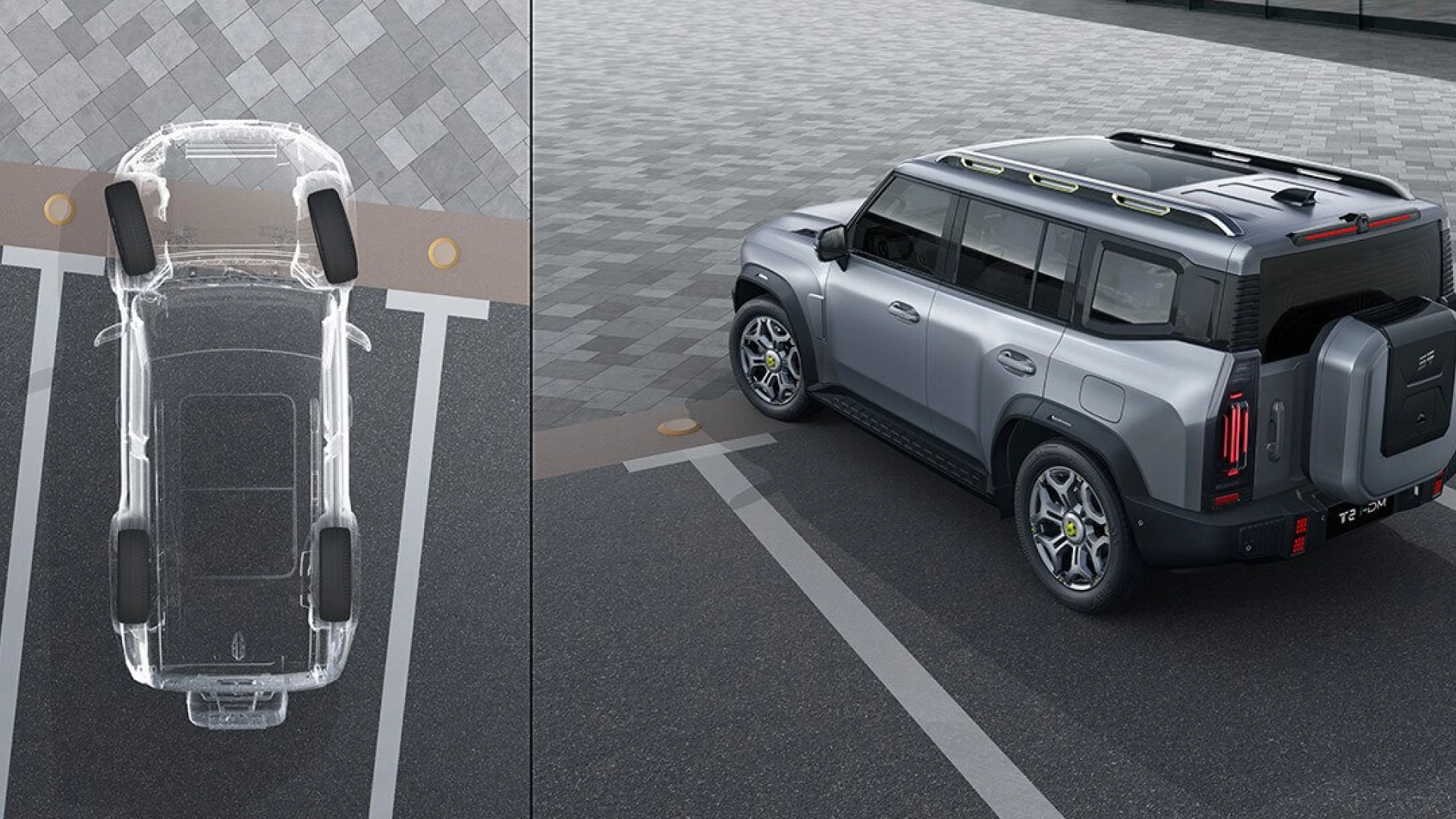

360° surround camera	4 (front, rear, left and right)
Water sensing main radar	1
Water sensing secondary radar	1
Driver Monitoring Camera	-
